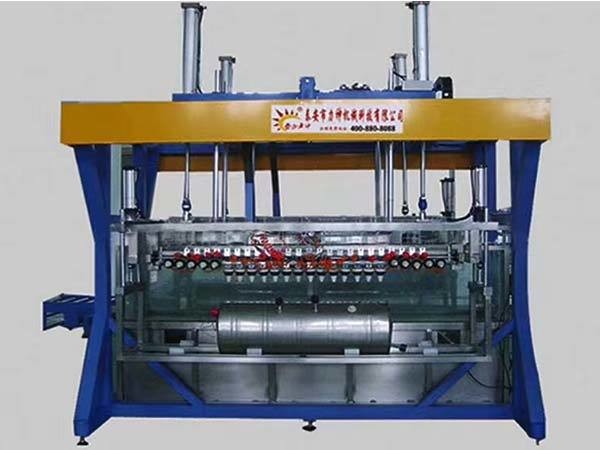

Automatic Leakage Testing Machine For Electric Water Heater Production Line

  • The automatic leak detector is mainly used to test the tightness of the inner tank of the solar water heater. The machine is equipped with automatic plugging, movement, origin resetting and unplugging functions, available in both double-station and single-station options. It boasts fast speed, high efficiency and low labor requirements. Its working length measures 3 meters while its air pressure stands at 0.5MPa and power at 1.5KW. The machine's dimensions are 3.5m x 1.5m x 2.5m.

    Automatic leak detector
    The automatic leak detector is mainly used to test the tightness of the inner tank of the solar water heater. The machine is equipped with automatic plugging, movement, origin resetting and unplugging functions, available in both double-station and single-station options. It boasts fast speed, high efficiency and low labor requirements. Its working length measures 3 meters while its air pressure stands at 0.5MPa and power at 1.5KW. The machine's dimensions are 3.5m x 1.5m x 2.5m.

    Product parameters

    Device name

    Automatic leak detector

    Device model

    LLT01

    Effective working length

    3m

    Power

    1.5KW

    Response time

    < 1 second

    Recovery Time

    <10 seconds

    Indication error

    ≤±3%

    Repeatability

    ≤1%

    Zero drift

    <±1%

    Range drift

    <±1%

    Air pressure

    0.5Pa

    Whether to customize

    Yes

    Machine size

    3.5M×1.5M×2.5M
